OutputFile Namespace Reference

Functions for writing solver output, status, message, and data files. More...

Functions
std::string	hostname ()
	Returns the current hostname.
std::string	timestamp ()
	Returns the current timestamp string.
std::string	dateStr ()
	Returns the current date string.
std::string	timeStr ()
	Returns the current time string.
bool	writeOutputFile (const std::string &jobName, const std::string &inputFile, const std::string &solverName, const std::string &formatName, const BusData &busData, const BranchData &branchData, const Eigen::MatrixXcd &Y, int iterations, double finalError, double tolerance, double elapsedSec, double basemva=100.0)
	Writes the main output file (.out) with full analysis results.
bool	writeStatusFile (const std::string &jobName, const std::string &inputFile, const std::string &solverName, const std::string &formatName, int nBus, int nBranch, int iterations, double finalError, double tolerance, bool converged, double elapsedSec)
	Writes the status file (.sta) with a compact solver summary.
bool	writeMessageFile (const std::string &jobName, const std::string &solverName, const std::vector< std::pair< int, double > > &iterationHistory, double tolerance, bool converged)
	Writes the message file (.msg) with iteration history.
bool	writeDatFile (const std::string &jobName, const std::string &inputFile, const std::string &solverName, const std::string &formatName, const BusData &busData, const BranchData &branchData, const std::vector< std::pair< int, double > > &iterationHistory, int totalIterations, double finalError, double tolerance, bool converged, double elapsedSec, double basemva=100.0)
	Writes the detailed data file (.dat) with full input/output records.

Detailed Description

Functions for writing solver output, status, message, and data files.

Function Documentation

dateStr()

std::string OutputFile::dateStr ( )

inline

Returns the current date string.

Definition at line 83 of file OutputFile.H.

                               {
        auto now = std::time(nullptr);
        return fmt::format("{:%d-%b-%Y}", fmt::localtime(now));
    }

Here is the caller graph for this function:

hostname()

std::string OutputFile::hostname ( )

inline

Returns the current hostname.

Definition at line 60 of file OutputFile.H.

                                {
    #ifdef _WIN32
        char buf[MAX_COMPUTERNAME_LENGTH + 1];
        DWORD bufLen = sizeof(buf);
        if (GetComputerNameA(buf, &bufLen)) return std::string(buf);
    #else
        char buf[256];
        if (gethostname(buf, sizeof(buf)) == 0) return std::string(buf);
    #endif
        return "unknown";
    }

Here is the caller graph for this function:

timestamp()

std::string OutputFile::timestamp ( )

inline

Returns the current timestamp string.

Definition at line 75 of file OutputFile.H.

                                 {
        auto now = std::time(nullptr);
        return fmt::format("{:%d-%b-%Y  %H:%M:%S}", fmt::localtime(now));
    }

Here is the caller graph for this function:

timeStr()

std::string OutputFile::timeStr ( )

inline

Returns the current time string.

Definition at line 91 of file OutputFile.H.

                               {
        auto now = std::time(nullptr);
        return fmt::format("{:%H:%M:%S}", fmt::localtime(now));
    }

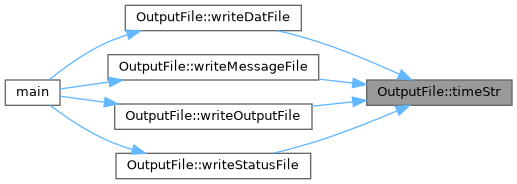

Here is the caller graph for this function:

writeDatFile()

bool OutputFile::writeDatFile ( const std::string &  jobName, const std::string &  inputFile, const std::string &  solverName, const std::string &  formatName, const BusData &  busData, const BranchData &  branchData, const std::vector< std::pair< int, double > > &  iterationHistory, int  totalIterations, double  finalError, double  tolerance, bool  converged, double  elapsedSec, double  basemva = 100.0  )

inline

Writes the detailed data file (.dat) with full input/output records.

Parameters

jobName	Job name (used as output filename stem).
inputFile	Path to the input data file.
solverName	Name of the solver method used.
formatName	Name of the input file format.
busData	Solved bus data.
branchData	Branch data.
iterationHistory	Vector of (iteration, error) pairs.
totalIterations	Total number of iterations performed.
finalError	Final convergence error.
tolerance	Convergence tolerance.
converged	Whether the solver converged.
elapsedSec	Wall-clock time in seconds.
basemva	System base MVA (default: 100).

Returns

true on success, false if file could not be opened.

Definition at line 457 of file OutputFile.H.

      {
        std::string datFile = jobName + ".dat";
        std::ofstream out(datFile);
        if (!out.is_open()) return false;

        int nBus = busData.V.size();
        int nBranch = branchData.From.size();
        int W = Display::pageWidth;

        out << Display::fileBanner();
        out << fmt::format("\n   deltaFlow v{:<32s}Date {:>14s}   Time {:>8s}\n",
            deltaFlow_VERSION, dateStr(), timeStr());

        out << Display::sectionHeader("I N P U T   P R O C E S S I N G");
        out << fmt::format("   Input File           : {}\n", inputFile);
        out << fmt::format("   Input Format         : {}\n", formatName);

        int nSlack = 0, nPV = 0, nPQ = 0;
        for (int i = 0; i < nBus; ++i) {
            if (busData.Type(i) == 1) nSlack++;
            else if (busData.Type(i) == 2) nPV++;
            else nPQ++;
        }

        out << fmt::format("   Number of Buses      : {:>6d}\n", nBus);
        out << fmt::format("     Slack Buses        : {:>6d}\n", nSlack);
        out << fmt::format("     PV Buses           : {:>6d}\n", nPV);
        out << fmt::format("     PQ Buses           : {:>6d}\n", nPQ);
        out << fmt::format("   Number of Branches   : {:>6d}\n", nBranch);
        out << fmt::format("   Base MVA             : {:>10.1f}\n", basemva);

        std::string solverBanner;
        for (const char &c : solverName) {
            solverBanner += std::toupper(c);
            solverBanner += ' ';
        }
        out << Display::sectionHeader(solverBanner + "   S O L V E R   E X E C U T I O N");
        out << fmt::format("   Method               : {}\n", solverName);
        out << fmt::format("   Max Iterations       : {:>6d}\n", static_cast<int>(iterationHistory.size()) > 0 ?
            static_cast<int>(iterationHistory.back().first) : totalIterations);
        out << fmt::format("   Convergence Tol.     : {:.6e}\n", tolerance);
        out << "\n";

        out << fmt::format("   {:>6s}  {:>16s}  {:>12s}  {:>8s}\n",
            "Iter", "Max Mismatch", "Tolerance", "Status");
        out << "   " << std::string(W - 4, '-') << "\n";

        for (const auto& [iter, error] : iterationHistory) {
            std::string status;
            if (error < tolerance)
                status = "CONV";
            else
                status = "----";
            out << fmt::format("   {:>6d}  {:>16.6e}  {:>12.6e}  {:>8s}\n",
                iter, error, tolerance, status);
        }

        out << "   " << std::string(W - 4, '-') << "\n";
        out << "\n";

        if (converged) {
            out << fmt::format("   {} CONVERGED after {} iterations.\n", solverName, totalIterations);
            out << fmt::format("   Final max mismatch = {:.6e}\n", finalError);
        } else {
            out << fmt::format("   *** WARNING: {} DID NOT CONVERGE after {} iterations.\n", solverName, totalIterations);
            out << fmt::format("   Final max mismatch = {:.6e}\n", finalError);
        }

        out << Display::sectionHeader("B U S   D A T A   R E S U L T S");
        out << fmt::format("   {:>4s}  {:>9s}  {:>9s}  {:>10s} {:>10s}  {:>10s} {:>10s}  {:>10s}\n",
            "Bus", "Voltage", "Angle", "Load", "Load", "Gen", "Gen", "Injected");
        out << fmt::format("   {:>4s}  {:>9s}  {:>9s}  {:>10s} {:>10s}  {:>10s} {:>10s}  {:>10s}\n",
            "No.", "Mag.", "Degree", "MW", "Mvar", "MW", "Mvar", "Mvar");
        out << "   " << std::string(W - 4, '=') << "\n";

        for (int i = 0; i < nBus; ++i) {
            double injectedMvar = busData.Qg(i) - busData.Ql(i);
            out << fmt::format("   {:>4d}  {:>9.4f}  {:>9.4f}  {:>10.4f} {:>10.4f}  {:>10.4f} {:>10.4f}  {:>10.4f}\n",
                i + 1, busData.V(i), busData.delta(i),
                busData.Pl(i), busData.Ql(i), busData.Pg(i), busData.Qg(i), injectedMvar);
        }

        out << "   " << std::string(W - 4, '=') << "\n";

        double totalPl = busData.Pl.sum();
        double totalQl = busData.Ql.sum();
        double totalPg = busData.Pg.sum();
        double totalQg = busData.Qg.sum();
        double totalInjected = totalQg - totalQl;

        out << fmt::format("   Total{:>27.4f} {:>10.4f}  {:>10.4f} {:>10.4f}  {:>10.4f}\n",
            totalPl, totalQl, totalPg, totalQg, totalInjected);

        out << "\n\n";
        out << "     JOB TIME SUMMARY\n";
        out << fmt::format("       TOTAL CPU TIME (SEC) = {:>12.5f}\n", elapsedSec);
        out << fmt::format("       WALLCLOCK TIME (SEC) = {:>12d}\n", static_cast<int>(std::round(elapsedSec)));
        out << "\n";

        out << Display::sectionHeader("A N A L Y S I S   C O M P L E T E");
        if (converged) {
            out << Display::center("THE ANALYSIS HAS BEEN COMPLETED SUCCESSFULLY") << "\n";
        } else {
            out << Display::center("*** THE ANALYSIS HAS NOT CONVERGED ***") << "\n";
        }
        out << "\n";

        out.close();
        return true;
    }

References Display::center(), dateStr(), BusData::delta, Display::fileBanner(), BranchData::From, Display::pageWidth, BusData::Pg, BusData::Pl, BusData::Qg, BusData::Ql, Display::sectionHeader(), timeStr(), BusData::Type, and BusData::V.

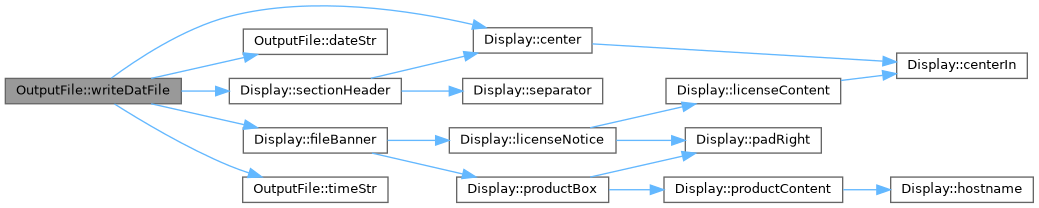

Here is the call graph for this function:

Here is the caller graph for this function:

writeMessageFile()

bool OutputFile::writeMessageFile ( const std::string &  jobName, const std::string &  solverName, const std::vector< std::pair< int, double > > &  iterationHistory, double  tolerance, bool  converged  )

inline

Writes the message file (.msg) with iteration history.

Parameters

jobName	Job name (used as output filename stem).
solverName	Name of the solver method used.
iterationHistory	Vector of (iteration, error) pairs.
tolerance	Convergence tolerance.
converged	Whether the solver converged.

Returns

true on success, false if file could not be opened.

Definition at line 397 of file OutputFile.H.

      {
        std::string msgFile = jobName + ".msg";
        std::ofstream out(msgFile);
        if (!out.is_open()) return false;

        out << Display::fileBanner();

        out << fmt::format("\n   deltaFlow v{:<32s}Date {:>14s}   Time {:>8s}\n",
            deltaFlow_VERSION, dateStr(), timeStr());
        out << "\n";

        out << Display::sectionHeader("I T E R A T I O N   H I S T O R Y");

        out << fmt::format("   {:>6s}  {:>16s}  {:>12s}  {:>8s}\n",
            "Iter", "Max Mismatch", "Tolerance", "Status");
        out << "   " << std::string(Display::pageWidth - 4, '-') << "\n";

        for (const auto& [iter, error] : iterationHistory) {
            std::string status = (error < tolerance) ? "CONV" : "";
            out << fmt::format("   {:>6d}  {:>16.6e}  {:>12.6e}  {:>8s}\n",
                iter, error, tolerance, status);
        }

        out << "   " << std::string(Display::pageWidth - 4, '-') << "\n";
        out << "\n";

        if (converged) {
            out << "   " << solverName << " CONVERGED\n";
        } else {
            out << "   *** WARNING: " << solverName << " DID NOT CONVERGE\n";
        }

        out << "\n";
        out.close();
        return true;
    }

References dateStr(), Display::fileBanner(), Display::pageWidth, Display::sectionHeader(), and timeStr().

Here is the call graph for this function:

Here is the caller graph for this function:

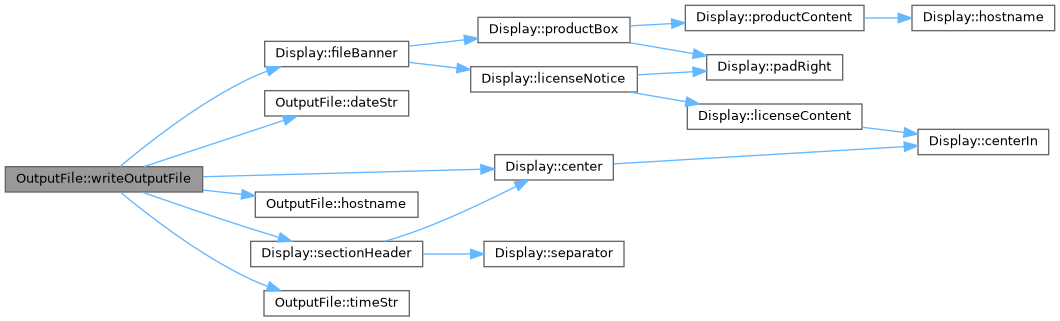

writeOutputFile()

bool OutputFile::writeOutputFile ( const std::string &  jobName, const std::string &  inputFile, const std::string &  solverName, const std::string &  formatName, const BusData &  busData, const BranchData &  branchData, const Eigen::MatrixXcd &  Y, int  iterations, double  finalError, double  tolerance, double  elapsedSec, double  basemva = 100.0  )

inline

Writes the main output file (.out) with full analysis results.

Parameters

jobName	Job name (used as output filename stem).
inputFile	Path to the input data file.
solverName	Name of the solver method used.
formatName	Name of the input file format.
busData	Solved bus data.
branchData	Branch data.
Y	Bus admittance matrix.
iterations	Number of solver iterations performed.
finalError	Final convergence error.
tolerance	Convergence tolerance.
elapsedSec	Wall-clock time in seconds.
basemva	System base MVA (default: 100).

Returns

true on success, false if file could not be opened.

Definition at line 112 of file OutputFile.H.

      {
        std::string outFile = jobName + ".out";
        std::ofstream out(outFile);
        if (!out.is_open()) return false;

        int nBus = busData.V.size();
        int nBranch = branchData.From.size();
        int W = Display::pageWidth;

        out << Display::fileBanner();

        out << fmt::format("\n   deltaFlow v{:<32s}Date {:>14s}   Time {:>8s}\n",
            deltaFlow_VERSION, dateStr(), timeStr());
        out << "\n";

        out << Display::sectionHeader("S Y S T E M   I N F O R M A T I O N");
        out << fmt::format("   Hostname             : {}\n", hostname());
        out << fmt::format("   CMake Version        : {}\n", CMake_VERSION);
        out << fmt::format("   Compiler Version     : GCC {}\n", gcc_VERSION);
        out << fmt::format("   deltaFlow Version    : {}\n", deltaFlow_VERSION);
        out << "\n";

        out << Display::sectionHeader("J O B   P A R A M E T E R S");
        out << fmt::format("   Job Name             : {}\n", jobName);
        out << fmt::format("   Input File           : {}\n", inputFile);
        out << fmt::format("   Input Format         : {}\n", formatName);
        out << fmt::format("   Solver Method        : {}\n", solverName);
        out << fmt::format("   Convergence Tol.     : {:.6e}\n", tolerance);
        out << "\n";

        out << Display::sectionHeader("M O D E L   S U M M A R Y");

        int nSlack = 0, nPV = 0, nPQ = 0;
        for (int i = 0; i < nBus; ++i) {
            if (busData.Type(i) == 1) nSlack++;
            else if (busData.Type(i) == 2) nPV++;
            else nPQ++;
        }

        out << fmt::format("   Number of Buses      : {:>6d}\n", nBus);
        out << fmt::format("     Slack Buses         : {:>6d}\n", nSlack);
        out << fmt::format("     PV Buses            : {:>6d}\n", nPV);
        out << fmt::format("     PQ Buses            : {:>6d}\n", nPQ);
        out << fmt::format("   Number of Branches   : {:>6d}\n", nBranch);
        out << fmt::format("   Base MVA             : {:>10.1f}\n", basemva);
        out << "\n";

        out << Display::sectionHeader("S O L V E R   S U M M A R Y");
        out << fmt::format("   Method               : {}\n", solverName);
        out << fmt::format("   Iterations           : {:>6d}\n", iterations);
        out << fmt::format("   Final Error          : {:.6e}\n", finalError);
        out << fmt::format("   Tolerance            : {:.6e}\n", tolerance);
        out << fmt::format("   Status               : CONVERGED\n");
        out << fmt::format("   Elapsed Time (sec)   : {:.3f}\n", elapsedSec);
        out << "\n";

        out << Display::sectionHeader("B U S   D A T A   R E S U L T S");
        out << fmt::format("   {:>4s}  {:>9s}  {:>9s}  {:>10s} {:>10s}  {:>10s} {:>10s}  {:>10s}\n",
            "Bus", "Voltage", "Angle", "Load", "Load", "Gen", "Gen", "Injected");
        out << fmt::format("   {:>4s}  {:>9s}  {:>9s}  {:>10s} {:>10s}  {:>10s} {:>10s}  {:>10s}\n",
            "No.", "Mag.", "Degree", "MW", "Mvar", "MW", "Mvar", "Mvar");
        out << "   " << std::string(W - 4, '=') << "\n";

        for (int i = 0; i < nBus; ++i) {
            double injectedMvar = busData.Qg(i) - busData.Ql(i);
            out << fmt::format("   {:>4d}  {:>9.4f}  {:>9.4f}  {:>10.4f} {:>10.4f}  {:>10.4f} {:>10.4f}  {:>10.4f}\n",
                i + 1, busData.V(i), busData.delta(i),
                busData.Pl(i), busData.Ql(i), busData.Pg(i), busData.Qg(i), injectedMvar);
        }

        double totalPl = busData.Pl.sum();
        double totalQl = busData.Ql.sum();
        double totalPg = busData.Pg.sum();
        double totalQg = busData.Qg.sum();
        double totalInjected = totalQg - totalQl;

        out << "   " << std::string(W - 4, '=') << "\n";
        out << fmt::format("   Total{:>27.4f} {:>10.4f}  {:>10.4f} {:>10.4f}  {:>10.4f}\n",
            totalPl, totalQl, totalPg, totalQg, totalInjected);
        out << "\n";

        out << Display::sectionHeader("L I N E   F L O W   A N D   L O S S E S");
        out << fmt::format("   {:>4s}  {:>4s}  {:>9s} {:>9s} {:>9s}   {:>9s} {:>9s}  {:>9s}\n",
            "From", "To", "MW", "Mvar", "MVA", "Loss MW", "Loss Mvar", "Tap");
        out << "   " << std::string(W - 4, '=') << "\n";

        auto Bc = branchData.B;
        int nLine = nBranch;

        Eigen::VectorXcd Vc(nBus);
        Eigen::VectorXcd S(nBus);
        for (int i = 0; i < nBus; ++i) {
            double mag = busData.V(i);
            double ang_rad = busData.delta(i) * M_PI / 180.0;
            Vc(i) = std::polar(mag, ang_rad);
            double P = busData.Pg(i) - busData.Pl(i);
            double Q = busData.Qg(i) - busData.Ql(i);
            S(i) = std::complex<double>(P, Q);
        }

        std::complex<double> SLT = 0.0;

        for (int n = 1; n <= nBus; ++n) {
            int n_idx = n - 1;
            bool busprt = false;

            for (int L = 0; L < nLine; ++L) {
                if (!busprt) {
                    double P_inj = busData.Pg(n_idx) - busData.Pl(n_idx);
                    double Q_inj = busData.Qg(n_idx) - busData.Ql(n_idx);
                    double S_mag = std::abs(S(n_idx)) * basemva;
                    out << fmt::format("   {:>4d}        {:>9.3f} {:>9.3f} {:>9.3f}\n",
                        n, P_inj, Q_inj, S_mag);
                    busprt = true;
                }

                auto writeLineFlow = [&](int from, int to, int L) {
                    int f_idx = from - 1;
                    int t_idx = to - 1;
                    double aL = (branchData.tapRatio(L) == 0.0) ? 1.0 : branchData.tapRatio(L);

                    std::complex<double> In, Ik;
                    if (branchData.From(L) == from) {
                        In = (Vc(f_idx) - aL * Vc(t_idx)) * Y(L) / (aL * aL) + Bc(L) / (aL * aL) * Vc(f_idx);
                        Ik = (Vc(t_idx) - Vc(f_idx) / aL) * Y(L) + Bc(L) * Vc(t_idx);
                    } else {
                        In = (Vc(f_idx) - Vc(t_idx) / aL) * Y(L) + Bc(L) * Vc(f_idx);
                        Ik = (Vc(t_idx) - aL * Vc(f_idx)) * Y(L) / (aL * aL) + Bc(L) / (aL * aL) * Vc(t_idx);
                    }
                    std::complex<double> Snk = Vc(f_idx) * std::conj(In) * basemva;
                    std::complex<double> Skn = Vc(t_idx) * std::conj(Ik) * basemva;
                    std::complex<double> SL = Snk + Skn;
                    SLT += SL;

                    if (aL != 1.0) {
                        out << fmt::format("         {:>4d}  {:>9.3f} {:>9.3f} {:>9.3f}   {:>9.3f} {:>9.3f}  {:>9.3f}\n",
                            to, std::real(Snk), std::imag(Snk), std::abs(Snk),
                            std::real(SL), std::imag(SL), aL);
                    } else {
                        out << fmt::format("         {:>4d}  {:>9.3f} {:>9.3f} {:>9.3f}   {:>9.3f} {:>9.3f}\n",
                            to, std::real(Snk), std::imag(Snk), std::abs(Snk),
                            std::real(SL), std::imag(SL));
                    }
                };

                if (branchData.From(L) == n) {
                    writeLineFlow(n, branchData.To(L), L);
                } else if (branchData.To(L) == n) {
                    writeLineFlow(n, branchData.From(L), L);
                }
            }
        }

        SLT /= 2.0;
        out << "\n";
        out << fmt::format("   Total loss                        {:>9.3f} {:>9.3f}\n",
            std::real(SLT), std::imag(SLT));
        out << "\n";

        out << "\n";
        out << "\n";
        out << "     JOB TIME SUMMARY\n";
        out << fmt::format("       TOTAL CPU TIME (SEC) = {:>12.5f}\n", elapsedSec);
        out << fmt::format("       WALLCLOCK TIME (SEC) = {:>12d}\n", static_cast<int>(std::round(elapsedSec)));
        out << "\n";

        out << Display::sectionHeader("A N A L Y S I S   C O M P L E T E");
        out << Display::center("THE ANALYSIS HAS BEEN COMPLETED SUCCESSFULLY") << "\n";
        out << "\n";

        out.close();
        return true;
    }

References BranchData::B, Display::center(), dateStr(), BusData::delta, Display::fileBanner(), BranchData::From, hostname(), Display::pageWidth, BusData::Pg, BusData::Pl, BusData::Qg, BusData::Ql, Display::sectionHeader(), BranchData::tapRatio, timeStr(), BranchData::To, BusData::Type, and BusData::V.

Here is the call graph for this function:

Here is the caller graph for this function:

writeStatusFile()

bool OutputFile::writeStatusFile ( const std::string &  jobName, const std::string &  inputFile, const std::string &  solverName, const std::string &  formatName, int  nBus, int  nBranch, int  iterations, double  finalError, double  tolerance, bool  converged, double  elapsedSec  )

inline

Writes the status file (.sta) with a compact solver summary.

Parameters

jobName	Job name (used as output filename stem).
inputFile	Path to the input data file.
solverName	Name of the solver method used.
formatName	Name of the input file format.
nBus	Number of buses.
nBranch	Number of branches.
iterations	Number of solver iterations performed.
finalError	Final convergence error.
tolerance	Convergence tolerance.
converged	Whether the solver converged.
elapsedSec	Wall-clock time in seconds.

Returns

true on success, false if file could not be opened.

Definition at line 314 of file OutputFile.H.

      {
        std::string staFile = jobName + ".sta";
        std::ofstream out(staFile);
        if (!out.is_open()) return false;

        out << fmt::format("deltaFlow v{:<36s}Date {:>14s} Time {:>8s}\n",
            deltaFlow_VERSION, dateStr(), timeStr());

        out << " SUMMARY OF JOB INFORMATION:\n";
        out << fmt::format(" {:>6s} {:>6s} {:>10s} {:>12s} {:>12s}  {:>8s}\n",
            "ITER", "STATUS", "ERROR", "TOLERANCE", "ELAPSED", "RESULT");

        out << fmt::format(" {:>6d} {:>6s} {:>10.3e} {:>12.3e} {:>12.3f}  {:>8s}\n",
            iterations,
            converged ? "CONV" : "FAIL",
            finalError,
            tolerance,
            elapsedSec,
            converged ? "OK" : "FAILED");

        out << "\n";
        if (converged) {
            out << " THE ANALYSIS HAS COMPLETED SUCCESSFULLY\n";
        } else {
            out << " THE ANALYSIS HAS FAILED TO CONVERGE\n";
        }

        out << "\n";
        out << "Jobinfo File:\n";
        out << fmt::format("Inputfile: {}\n", inputFile);
        out << fmt::format("Solver: {}\n", solverName);
        out << fmt::format("Format: {}\n", formatName);
        out << fmt::format("Hostname: {}\n", hostname());
        out << "\n";

        out << "solver and hardware info\n";
        out << "------------------------\n";
        out << fmt::format("version           : {}\n", deltaFlow_VERSION);
        out << fmt::format("compiler          : GCC {}\n", gcc_VERSION);
        out << fmt::format("cmake             : {}\n", CMake_VERSION);
        out << fmt::format("hostname          : {}\n", hostname());
        out << "\n";

        out << "model info\n";
        out << "----------\n";
        out << fmt::format(" # of buses       : {}\n", nBus);
        out << fmt::format(" # of branches    : {}\n", nBranch);
        out << "\n";

        out << "run and timing info\n";
        out << "-------------------\n";
        out << fmt::format("simulation end    : {}\n", timestamp());
        out << fmt::format("elapsed    time   : {:.3f} seconds\n", elapsedSec);
        out << fmt::format("iterations        : {}\n", iterations);
        out << fmt::format("final error       : {:.6e}\n", finalError);
        out << fmt::format("termination status: {}\n", converged ? "normal" : "failed");
        out << "\n";

        out.close();
        return true;
    }

References dateStr(), hostname(), timestamp(), and timeStr().

Here is the call graph for this function:

Here is the caller graph for this function:
