Abstract reader interface for power system input formats. More...

#include <Reader.H>

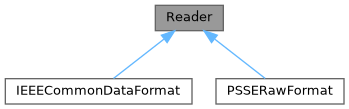

Inheritance diagram for Reader:

[legend]

Collaboration diagram for Reader:

[legend]

Public Member Functions
virtual	~Reader ()=default
	Virtual destructor.

virtual void	read (const std::string &filename)=0
	Read and parse the input file.

const BusData &	getBusData () const noexcept
	Get the parsed bus data.

const BranchData &	getBranchData () const noexcept
	Get the parsed branch data.

Protected Attributes
BusData	busData
	Parsed bus data.

BranchData	branchData
	Parsed branch data.

Detailed Description

Abstract reader interface for power system input formats.

Subclasses implement the read() method for specific file formats (e.g., IEEE Common Data Format, PSS/E Raw).

Definition at line 40 of file Reader.H.

Constructor & Destructor Documentation

◆ ~Reader()

virtual Reader::~Reader ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ getBranchData()

const BranchData & Reader::getBranchData ( ) const

noexcept

Get the parsed branch data.

Returns: Const reference to BranchData.

Definition at line 32 of file Reader.C.

                                                       {
    return this->branchData;
}

References branchData.

◆ getBusData()

const BusData & Reader::getBusData ( ) const

noexcept

Get the parsed bus data.

Returns: Const reference to BusData.

Definition at line 28 of file Reader.C.

                                                 {
    return this->busData;
}

References busData.

◆ read()

virtual void Reader::read ( const std::string & filename )

pure virtual

Read and parse the input file.

Parameters

filename Path to the input data file.

Implemented in IEEECommonDataFormat, and PSSERawFormat.

Member Data Documentation

◆ branchData

BranchData Reader::branchData

protected

Parsed branch data.

Definition at line 65 of file Reader.H.

◆ busData

BusData Reader::busData

protected

Parsed bus data.

Definition at line 64 of file Reader.H.

The documentation for this class was generated from the following files:

src/io/Reader.H
src/io/Reader.C
