Writer.C File Reference

Terminal output writer implementation for bus data and line flow results. More...

#include <complex>
#include <fstream>
#include <iomanip>
#include "Display.H"
#include "Data.H"
#include "Logger.H"
#include "Writer.H"

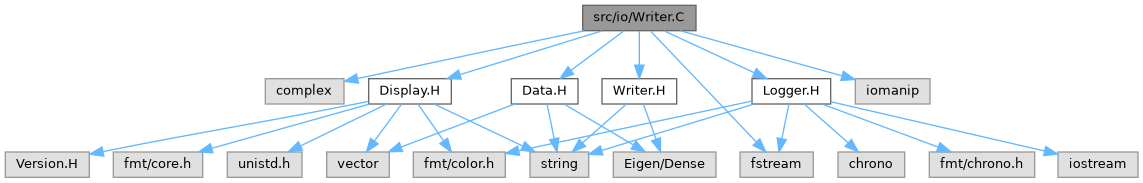

Include dependency graph for Writer.C:

Go to the source code of this file.

Functions

void dispBusData (const BusData &busData)
 Displays bus data in a human-readable format.

void dispLineFlow (const BusData &busData, const BranchData &branchData, const Eigen::MatrixXcd &Y, double basemva)
 Displays the line flow results, including power flow and losses.

bool writeOutputCSV (const BusData &busData)
 Writes bus data results to a CSV file.


Detailed Description

Terminal output writer implementation for bus data and line flow results.

Definition in file Writer.C.

Function Documentation

◆ dispBusData()

void dispBusData ( const BusData &  busData)

Displays bus data in a human-readable format.

Parameters
busDataThe bus data to display.

Definition at line 36 of file Writer.C.

36 {
37 int nbus = busData.V.size();
38
39 Display::printSectionHeader("B U S D A T A R E S U L T S");
40
41 fmt::print(fg(Display::LOGO_COLOR), " {:>4s} {:>9s} {:>9s} {:>10s} {:>10s} {:>10s} {:>10s} {:>10s}\n",
42 "Bus", "Voltage", "Angle", "Load", "Load", "Gen", "Gen", "Injected");
43 fmt::print(fg(Display::LOGO_COLOR), " {:>4s} {:>9s} {:>9s} {:>10s} {:>10s} {:>10s} {:>10s} {:>10s}\n",
44 "No.", "Mag.", "Degree", "MW", "Mvar", "MW", "Mvar", "Mvar");
45 fmt::print(" {}\n", std::string(76, '='));
46
47 for (int i = 0; i < nbus; ++i) {
48 double injectedMvar = busData.Qg(i) - busData.Ql(i);
49
50 fmt::print(" {:>4d} {:>9.4f} {:>9.4f} {:>10.4f} {:>10.4f} {:>10.4f} {:>10.4f} {:>10.4f}\n",
51 i + 1,
52 busData.V(i),
53 busData.delta(i),
54 busData.Pl(i),
55 busData.Ql(i),
56 busData.Pg(i),
57 busData.Qg(i),
58 injectedMvar);
59 }
60
61 double totalPl = busData.Pl.sum();
62 double totalQl = busData.Ql.sum();
63 double totalPg = busData.Pg.sum();
64 double totalQg = busData.Qg.sum();
65 double totalInjected = totalQg - totalQl;
66
67 fmt::print(" {}\n", std::string(76, '='));
68 fmt::print(" Total{:>27.4f} {:>10.4f} {:>10.4f} {:>10.4f} {:>10.4f}\n",
69 totalPl, totalQl, totalPg, totalQg, totalInjected);
70 fmt::print("\n");
71
72 // Also log to file
73 LOG_INFO("Bus Data Summary: {} buses", nbus);
74}
LOG_INFO
#define LOG_INFO(msg,...)
Macro for logging an info-level message.
Definition Logger.H:86
Display::LOGO_COLOR
constexpr fmt::rgb LOGO_COLOR
deltaFlow logo color
Definition Display.H:50
Display::printSectionHeader
void printSectionHeader(const std::string &title)
Prints a colored section header to terminal.
Definition Display.H:325
BusData::Ql
Eigen::VectorXd Ql
Reactive power load [MVAr or p.u.].
Definition Data.H:65
BusData::V
Eigen::VectorXd V
Voltage magnitude [p.u.].
Definition Data.H:60
BusData::Pg
Eigen::VectorXd Pg
Active power generation [MW or p.u.].
Definition Data.H:62
BusData::delta
Eigen::VectorXd delta
Voltage angle [rad or deg].
Definition Data.H:61
BusData::Pl
Eigen::VectorXd Pl
Active power load [MW or p.u.].
Definition Data.H:64
BusData::Qg
Eigen::VectorXd Qg
Reactive power generation [MVAr or p.u.].
Definition Data.H:63

References BusData::delta, LOG_INFO, Display::LOGO_COLOR, BusData::Pg, BusData::Pl, Display::printSectionHeader(), BusData::Qg, BusData::Ql, and BusData::V.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ dispLineFlow()

void dispLineFlow ( const BusData &  busData,
const BranchData &  branchData,
const Eigen::MatrixXcd &  Y,
double  basemva = 100
)

Displays the line flow results, including power flow and losses.

Parameters
busDataThe bus data structure.
branchDataThe branch data structure.
YThe bus admittance matrix ($$ Y_{bus} $$).
basemvaThe base MVA for per-unit system (default: 100).

Definition at line 76 of file Writer.C.

81 {
82 auto Bc = branchData.B;
83 int nBus = static_cast<int>(busData.V.size());
84 int nLine = static_cast<int>(branchData.From.size());
85
86 Eigen::VectorXcd V(nBus);
87 Eigen::VectorXcd S(nBus);
88
89 for (int i = 0; i < V.size(); ++i) {
90 double mag = busData.V(i);
91 double ang_rad = busData.delta(i) * M_PI / 180.0;
92 V(i) = std::polar(mag, ang_rad);
93
94 double P = busData.Pg(i) - busData.Pl(i);
95 double Q = busData.Qg(i) - busData.Ql(i);
96 S(i) = std::complex<double>(P, Q);
97 }
98
99 std::complex<double> SLT = 0.0;
100
101 Display::printSectionHeader("L I N E F L O W A N D L O S S E S");
102
103 fmt::print(fg(Display::LOGO_COLOR), " {:>4s} {:>4s} {:>9s} {:>9s} {:>9s} {:>9s} {:>9s} {:>9s}\n",
104 "From", "To", "MW", "Mvar", "MVA", "Loss MW", "Loss Mvar", "Tap");
105 fmt::print(" {}\n", std::string(76, '='));
106
107 for (int n = 1; n <= nBus; ++n) {
108 int n_idx = n - 1;
109 bool busprt = false;
110
111 for (int L = 0; L < nLine; ++L) {
112 if (!busprt) {
113 double P_inj = busData.Pg(n_idx) - busData.Pl(n_idx);
114 double Q_inj = busData.Qg(n_idx) - busData.Ql(n_idx);
115 double S_mag = std::abs(S(n_idx)) * basemva;
116
117 fmt::print(" {:>4d} {:>9.3f} {:>9.3f} {:>9.3f}\n", n, P_inj, Q_inj, S_mag);
118 busprt = true;
119 }
120
121 if (branchData.From(L) == n) {
122 int k = branchData.To(L);
123 int k_idx = k - 1;
124 double aL = (branchData.tapRatio(L) == 0.0) ? 1.0 : branchData.tapRatio(L);
125
126 std::complex<double> In = (V(n_idx) - aL * V(k_idx)) * Y(L) / (aL * aL) + Bc(L) / (aL * aL) * V(n_idx);
127 std::complex<double> Ik = (V(k_idx) - V(n_idx) / aL) * Y(L) + Bc(L) * V(k_idx);
128
129 std::complex<double> Snk = V(n_idx) * std::conj(In) * basemva;
130 std::complex<double> Skn = V(k_idx) * std::conj(Ik) * basemva;
131 std::complex<double> SL = Snk + Skn;
132
133 SLT += SL;
134
135 if (aL != 1.0) {
136 fmt::print(" {:>4d} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f}\n",
137 k,
138 std::real(Snk),
139 std::imag(Snk),
140 std::abs(Snk),
141 std::real(SL),
142 std::imag(SL),
143 aL);
144 } else {
145 fmt::print(" {:>4d} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f}\n",
146 k,
147 std::real(Snk),
148 std::imag(Snk),
149 std::abs(Snk),
150 std::real(SL),
151 std::imag(SL));
152 }
153
154 } else if (branchData.To(L) == n) {
155 int k = branchData.From(L);
156 int k_idx = k - 1;
157 double aL = (branchData.tapRatio(L) == 0.0) ? 1.0 : branchData.tapRatio(L);
158
159 std::complex<double> In = (V(n_idx) - V(k_idx) / aL) * Y(L) + Bc(L) * V(n_idx);
160 std::complex<double> Ik = (V(k_idx) - aL * V(n_idx)) * Y(L) / (aL * aL) + Bc(L) / (aL * aL) * V(k_idx);
161
162 std::complex<double> Snk = V(n_idx) * std::conj(In) * basemva;
163 std::complex<double> Skn = V(k_idx) * std::conj(Ik) * basemva;
164 std::complex<double> SL = Snk + Skn;
165
166 SLT += SL;
167
168 fmt::print(" {:>4d} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f} {:>9.3f}\n",
169 k,
170 std::real(Snk),
171 std::imag(Snk),
172 std::abs(Snk),
173 std::real(SL),
174 std::imag(SL));
175 }
176 }
177 }
178
179 SLT /= 2.0;
180
181 fmt::print("\n");
182 fmt::print(fg(fmt::color::yellow) | fmt::emphasis::bold,
183 " Total loss {:>9.3f} {:>9.3f}\n",
184 std::real(SLT), std::imag(SLT));
185 fmt::print("\n");
186
187 // Log summary
188 LOG_INFO("Line Flow computed: Total loss P={:.3f} MW, Q={:.3f} Mvar",
189 std::real(SLT), std::imag(SLT));
190}
BranchData::tapRatio
Eigen::VectorXd tapRatio
Transformer tap ratio ($$ a $$)
Definition Data.H:90
BranchData::B
Eigen::VectorXd B
Line susceptance ($$ B $$) [p.u.].
Definition Data.H:89
BranchData::From
Eigen::VectorXi From
From bus indices.
Definition Data.H:84
BranchData::To
Eigen::VectorXi To
To bus indices.
Definition Data.H:85

References BranchData::B, BusData::delta, BranchData::From, LOG_INFO, Display::LOGO_COLOR, BusData::Pg, BusData::Pl, Display::printSectionHeader(), BusData::Qg, BusData::Ql, BranchData::tapRatio, BranchData::To, and BusData::V.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ writeOutputCSV()

bool writeOutputCSV ( const BusData &  busData)

Writes bus data results to a CSV file.

This function exports the results contained in the BusData structure to a CSV file. The output may include bus voltages, angles, power generation, loads, and other calculated quantities.

Parameters
busDataThe bus data structure containing simulation results.
Returns
true if the output was successfully written, false otherwise.

Definition at line 192 of file Writer.C.

192 {
193 std::ofstream out("deltaFlow.csv");
194 if (!out.is_open()) return false;
195
196 out << "BusID,Name,Type,Voltage,Angle,Pg,Qg,Pl,Ql,Qgmax,Qgmin,Gs,Bs\n";
197 for (int i = 0; i < busData.ID.size(); ++i) {
198 out << busData.ID[i] << ","
199 << busData.Name[i] << ","
200 << busData.Type[i] << ","
201 << std::fixed << std::setprecision(64)
202 << busData.V[i] << ","
203 << busData.delta[i] << ","
204 << busData.Pg[i] << ","
205 << busData.Qg[i] << ","
206 << busData.Pl[i] << ","
207 << busData.Ql[i] << ","
208 << busData.Qgmax[i] << ","
209 << busData.Qgmin[i] << ","
210 << busData.Gs[i] << ","
211 << busData.Bs[i] << "\n";
212 }
213
214 out.close();
215
216 return true;
217}
BusData::Qgmax
Eigen::VectorXd Qgmax
Max reactive power generation [MVAr or p.u.].
Definition Data.H:66
BusData::ID
Eigen::VectorXi ID
Bus numbers.
Definition Data.H:56
BusData::Name
std::vector< std::string > Name
Bus names.
Definition Data.H:57
BusData::Qgmin
Eigen::VectorXd Qgmin
Min reactive power generation [MVAr or p.u.].
Definition Data.H:67
BusData::Gs
Eigen::VectorXd Gs
Shunt conductance ($$ G_{sh} $$) [p.u.].
Definition Data.H:68
BusData::Bs
Eigen::VectorXd Bs
Shunt susceptance ($$ B_{sh} $$) [p.u.].
Definition Data.H:69
BusData::Type
Eigen::VectorXi Type
Bus type (1=Slack, 2=PV, 3=PQ)
Definition Data.H:58

References BusData::Bs, BusData::delta, BusData::Gs, BusData::ID, BusData::Name, BusData::Pg, BusData::Pl, BusData::Qg, BusData::Qgmax, BusData::Qgmin, BusData::Ql, BusData::Type, and BusData::V.

Here is the caller graph for this function:
