NewtonRaphson.C File Reference

Newton-Raphson power flow solver implementation. More...

#include <cmath>
#include <limits>
#include <iostream>
#include <vector>
#include "Logger.H"
#include "NewtonRaphson.H"
#include "Jacobian.H"
#include "PowerMismatch.H"
#include "Progress.H"
#include "Data.H"
#include "Utils.H"

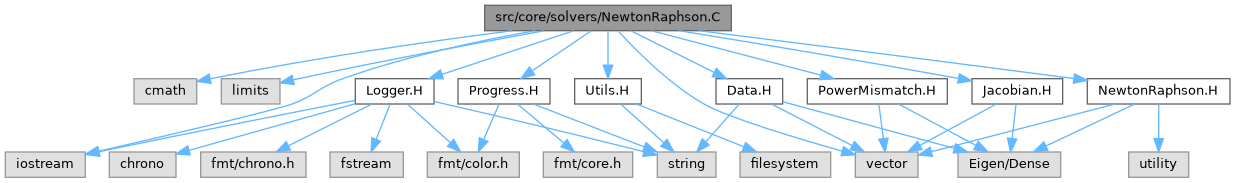

Include dependency graph for NewtonRaphson.C:

Go to the source code of this file.

Functions
bool	NewtonRaphson (const Eigen::MatrixXd &G, const Eigen::MatrixXd &B, const Eigen::VectorXd &Ps, const Eigen::VectorXd &Qs, Eigen::VectorXd &V, Eigen::VectorXd &delta, int n_bus, int n_pq, const std::vector< int > &pq_bus_id, int maxIter, double tolerance, std::vector< std::pair< int, double > > *iterHistory)
	Solves the power flow equations using the Newton-Raphson iterative method.

Detailed Description

Newton-Raphson power flow solver implementation.

Definition in file NewtonRaphson.C.

Function Documentation

NewtonRaphson()

bool NewtonRaphson	(	const Eigen::MatrixXd &	G,
		const Eigen::MatrixXd &	B,
		const Eigen::VectorXd &	Ps,
		const Eigen::VectorXd &	Qs,
		Eigen::VectorXd &	V,
		Eigen::VectorXd &	delta,
		int	n_bus,
		int	n_pq,
		const std::vector< int > &	pq_bus_id,
		int	maxIter = 1024,
		double	tolerance = 1E-8,
		std::vector< std::pair< int, double > > *	iterHistory = nullptr
	)

Solves the power flow equations using the Newton-Raphson iterative method.

This is a pure solver function that takes G, B matrices, scheduled power, initial voltage/angle guesses, and bus classification. It modifies V and delta in-place.

Parameters

G	Conductance matrix (real part of $$ Y_{bus} $$).
B	Susceptance matrix (imaginary part of $$ Y_{bus} $$).
Ps	Scheduled active power injections (Pg - Pl) [p.u.].
Qs	Scheduled reactive power injections (Qg - Ql) [p.u.].
V	(in/out) Voltage magnitudes [p.u.].
delta	(in/out) Voltage angles [rad].
n_bus	Total number of buses.
n_pq	Number of PQ buses.
pq_bus_id	0-based indices of PQ buses.
maxIter	Maximum number of iterations (default: 1024).
tolerance	Convergence tolerance for power mismatches (default: $$ 1 \times 10^{-8} $$).
iterHistory	Optional pointer to store iteration number and error at each step.

Returns

true if converged, false otherwise.

Definition at line 39 of file NewtonRaphson.C.

  {
    // Compute initial mismatch
    Eigen::VectorXd P(n_bus), Q(n_bus);
    Eigen::VectorXd mismatch = powerMismatch(Ps, Qs, G, B, V, delta, n_bus, pq_bus_id, P, Q);

    double error = mismatch.cwiseAbs().maxCoeff();
    int iter = 0;

    if (iterHistory) {
        iterHistory->clear();
        iterHistory->emplace_back(0, error);
    }

    while (error >= tolerance) {
        if (iter >= maxIter) {
            printConvergenceStatus("Newton-Raphson", false, iter, maxIter, error, tolerance);
            LOG_WARN("Newton-Raphson did not converge within {} iterations.", maxIter);
            LOG_DEBUG("Final max mismatch was {:.6e}, tolerance is {:.6e}.", error, tolerance);
            return false;
        }
        iter++;

        // Build Jacobian
        Eigen::MatrixXd J = computeJacobian(V, delta, n_bus, n_pq, pq_bus_id, G, B, P, Q);

        // Solve J * correction = mismatch
        Eigen::VectorXd correction = J.colPivHouseholderQr().solve(mismatch);

        // Update delta for non-slack buses (indices 1..N-1)
        for (int i = 1; i < n_bus; ++i) {
            delta(i) += correction(i - 1);
        }

        // Update V for PQ buses only
        for (int k = 0; k < n_pq; ++k) {
            V(pq_bus_id[k]) += correction(n_bus - 1 + k);
        }

        // Recompute mismatch
        mismatch = powerMismatch(Ps, Qs, G, B, V, delta, n_bus, pq_bus_id, P, Q);

        error = mismatch.cwiseAbs().maxCoeff();
        if (iterHistory) iterHistory->emplace_back(iter, error);
        printIterationProgress("Newton-Raphson", iter, maxIter, error, tolerance);
        LOG_DEBUG("NR iteration {}: max mismatch = {:.16e}", iter, error);
    }

    printConvergenceStatus("Newton-Raphson", true, iter, maxIter, error, tolerance);
    LOG_DEBUG("Newton-Raphson converged in {} iterations with max mismatch {:.6e}", iter, error);
    return true;
}

References computeJacobian(), LOG_DEBUG, LOG_WARN, powerMismatch(), printConvergenceStatus(), and printIterationProgress().

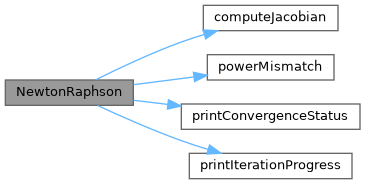

Here is the call graph for this function:
