Jacobian.H File Reference

Jacobian matrix computation for Newton-Raphson power flow analysis. More...

#include <Eigen/Dense>
#include <vector>

Include dependency graph for Jacobian.H:

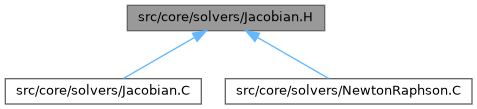

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
Eigen::MatrixXd	computeJacobian (const Eigen::VectorXd &V, const Eigen::VectorXd &delta, int n_bus, int n_pq, const std::vector< int > &pq_bus_id, const Eigen::MatrixXd &G, const Eigen::MatrixXd &B, const Eigen::VectorXd &P, const Eigen::VectorXd &Q)
	Computes the Jacobian matrix for the Newton-Raphson power flow solver.

Detailed Description

Jacobian matrix computation for Newton-Raphson power flow analysis.

Constructs the Jacobian matrix with block structure:

$$ J = \begin{bmatrix} J_{11} & J_{12} \ J_{21} & J_{22} \end{bmatrix} $$

where:

• $$ J_{11} $$: $$ \frac{\partial P}{\partial \delta} $$ for non-slack buses
• $$ J_{12} $$: $$ \frac{\partial P}{\partial |V|} $$ for non-slack rows, PQ columns
• $$ J_{21} $$: $$ \frac{\partial Q}{\partial \delta} $$ for PQ rows, non-slack columns
• $$ J_{22} $$: $$ \frac{\partial Q}{\partial |V|} $$ for PQ rows and columns

Follows the formulation by B. Sereeter, C. Vuik, and C. Witteveen (REPORT 17-07).

Definition in file Jacobian.H.

Function Documentation

computeJacobian()

Eigen::MatrixXd computeJacobian	(	const Eigen::VectorXd &	V,
		const Eigen::VectorXd &	delta,
		int	n_bus,
		int	n_pq,
		const std::vector< int > &	pq_bus_id,
		const Eigen::MatrixXd &	G,
		const Eigen::MatrixXd &	B,
		const Eigen::VectorXd &	P,
		const Eigen::VectorXd &	Q
	)

Computes the Jacobian matrix for the Newton-Raphson power flow solver.

Parameters

V	Voltage magnitudes at each bus [p.u.].
delta	Voltage angles at each bus [rad].
n_bus	Total number of buses.
n_pq	Number of PQ buses.
pq_bus_id	0-based indices of PQ buses.
G	Conductance matrix (real part of $$ Y_{bus} $$).
B	Susceptance matrix (imaginary part of $$ Y_{bus} $$).
P	Computed active power at each bus (from power mismatch) [p.u.].
Q	Computed reactive power at each bus (from power mismatch) [p.u.].

Returns

The assembled Jacobian matrix.

Definition at line 30 of file Jacobian.C.

  {
    // J11: (n_bus-1) x (n_bus-1) - dP/ddelta, non-slack buses
    Eigen::MatrixXd J11 = Eigen::MatrixXd::Zero(n_bus - 1, n_bus - 1);

    for (int i = 1; i < n_bus; ++i) {
        for (int k = 1; k < n_bus; ++k) {
            if (i == k) {
                J11(i - 1, k - 1) = -Q(i) - V(i) * V(i) * B(i, i);
            } else {
                double dik = delta(i) - delta(k);
                J11(i - 1, k - 1) = V(i) * V(k) * (G(i, k) * std::sin(dik)
                    - B(i, k) * std::cos(dik));
            }
        }
    }

    // J21: n_pq x (n_bus-1) - dQ/ddelta, PQ rows, non-slack columns
    Eigen::MatrixXd J21 = Eigen::MatrixXd::Zero(n_pq, n_bus - 1);

    for (int i = 0; i < n_pq; ++i) {
        int j = pq_bus_id[i];
        for (int k = 1; k < n_bus; ++k) {
            if (j == k) {
                J21(i, k - 1) = P(j) - V(j) * V(j) * G(j, j);
            } else {
                double djk = delta(j) - delta(k);
                J21(i, k - 1) = -V(j) * V(k) * (G(j, k) * std::cos(djk)
                    + B(j, k) * std::sin(djk));
            }
        }
    }

    // J12: (n_bus-1) x n_pq - dP/dV, non-slack rows, PQ columns
    Eigen::MatrixXd J12 = Eigen::MatrixXd::Zero(n_bus - 1, n_pq);

    for (int i = 1; i < n_bus; ++i) {
        for (int k = 0; k < n_pq; ++k) {
            int j = pq_bus_id[k];
            if (i == j) {
                J12(i - 1, k) = P(j) / V(j) + V(j) * G(j, j);
            } else {
                double dij = delta(i) - delta(j);
                J12(i - 1, k) = V(i) * (G(i, j) * std::cos(dij)
                    + B(i, j) * std::sin(dij));
            }
        }
    }

    // J22: n_pq x n_pq - dQ/dV, PQ rows and columns
    Eigen::MatrixXd J22 = Eigen::MatrixXd::Zero(n_pq, n_pq);

    for (int i = 0; i < n_pq; ++i) {
        int j = pq_bus_id[i];
        for (int k = 0; k < n_pq; ++k) {
            int l = pq_bus_id[k];
            if (j == l) {
                J22(i, k) = Q(j) / V(j) - V(j) * B(j, j);
            } else {
                double djl = delta(j) - delta(l);
                J22(i, k) = V(j) * (G(j, l) * std::sin(djl)
                    - B(j, l) * std::cos(djl));
            }
        }
    }

    // Assemble full Jacobian: [J11 J12; J21 J22]
    int dim = (n_bus - 1) + n_pq;
    Eigen::MatrixXd J(dim, dim);
    J.topLeftCorner(n_bus - 1, n_bus - 1) = J11;
    J.topRightCorner(n_bus - 1, n_pq) = J12;
    J.bottomLeftCorner(n_pq, n_bus - 1) = J21;
    J.bottomRightCorner(n_pq, n_pq) = J22;

    return J;
}

Here is the caller graph for this function:
